Official Dealers
Discover the devices compatible with JBosk
INDUSTRIAL SMARTPHONE OR TABLET
Terminals chosen to allow the use of jBosk in harsh environments
INDUSTRIAL SMARTPHONE OR TABLET
Terminals chosen to allow the use of jBosk in harsh environments
DPII+ is an electronic caliper that allows both the measurement of tree diameter, whether standing or on the ground, and the processing and calculation of data. Furthermore, it allows data export, even offline, in a complete and ready-to-use format.
Capable of calculating the volume for ground batches using a classic algorithm with or without bark deductions, while for standing trees it uses a volume table.
During the measurement, all volume calculations are performed automatically, providing a constant summary of the situation. The collected data can also be exported in Microsoft Excel or XML format.
For standing measurements, the caliper includes a table of diameter classes for the area where it will be used, so as to be able to calculate the volume based on the reference territory.
Diameter measurement, trunk length, species, quality, tariff, notes, GPS coordinates (if purchased with a GPS Antenna). It also allows you to set up to 5 custom fields for the measurement header.
Capable of calculating the volume for ground batches using a classic algorithm with or without bark deductions, while for standing trees it uses a volume table.
During the measurement, all volume calculations are performed automatically, providing a constant summary of the situation. The collected data can also be exported in Microsoft Excel or XML format.
For standing measurements, the caliper includes a table of diameter classes for the area where it will be used, so as to be able to calculate the volume based on the reference territory.
Diameter measurement, trunk length, species, quality, tariff, notes, GPS coordinates (if purchased with a GPS Antenna). It also allows you to set up to 5 custom fields for the measurement header.
Why use
APP + Caliper DPII + ?
The integration of the caliper with the jBosk app consists of the possibility of transferring the collected data of an entire batch via Bluetooth or USB cable to manage them from jBosk and use the following features:
MDII+ is a traditional electronic caliper which, unlike the DPII Caliper, does not perform calculations but only allows the export of the raw measured data.
Why use
APP + Caliper MDII + ?
In this integration, JBosk plays a crucial role. Thanks to its Bluetooth connection, the MDII+ caliper will send the following data directly to the app: diameter, tree species, quality, length/height, and GPS coordinates. The app will then automatically calculate the volume and add it to the lot, along with other data, to enrich the survey with all available details, collected automatically with a single click.
Once complete, all measurements will be available in the JBosk app for various operations:
The Digitech BT is a powerful electronic caliper, developed to communicate wirelessly on-line with mobile devices and existing field data collection systems. The low weight and ergonomic design will give you the same feeling as when working with a traditional caliper.
With Digitech BT in LINE mode, data is sent wirelessly to IOS or Android devices. Digitech BT continuously sends all data that is recorded, and nothing is stored locally in the caliper.
Data can also be stored locally in the Digitech BT as (XML) file. By connecting Digitech BT with Haglof Link on your mobile device or using the Windows application Haglof BLE Commander, you can transfear the file wirelessly via Bluetooth and open the file in Excel or other software.
Digitech BT has patented foldable jaws for convenient storage and transport. It is sturdy and lightweight, smooth to handle and extremely rugged. Exclusive, non-reflecting anodized aluminum scale, from 320 to 1020mm or 12” to 40” inch as standard lengths.
With Bluetooth® 4.0 We also support wireless transmission to both IOS, such as iPhones, iPads or Android devices. It is possible to send data wirelessly up to 100 meters in favorable conditions.
With Digitech BT in LINE mode, data is sent wirelessly to IOS or Android devices. Digitech BT continuously sends all data that is recorded, and nothing is stored locally in the caliper.
Data can also be stored locally in the Digitech BT as (XML) file. By connecting Digitech BT with Haglof Link on your mobile device or using the Windows application Haglof BLE Commander, you can transfear the file wirelessly via Bluetooth and open the file in Excel or other software.
Digitech BT has patented foldable jaws for convenient storage and transport. It is sturdy and lightweight, smooth to handle and extremely rugged. Exclusive, non-reflecting anodized aluminum scale, from 320 to 1020mm or 12” to 40” inch as standard lengths.
With Bluetooth® 4.0 We also support wireless transmission to both IOS, such as iPhones, iPads or Android devices. It is possible to send data wirelessly up to 100 meters in favorable conditions.
Why Use
APP + Digitech BT ?
In this setup, thanks to a Bluetooth connection, the Digitech BT caliper will send only the tree's diameter directly to the app. The JBosk app will then automatically calculate the volume and add it to the lot, along with other data (such as tree species, height/diameter, quality, GPS coordinates, and any notes) which will be entered directly on the smartphone or tablet by the operator.
Once completed, all measurements and details will be available in the JBosk app for various operations:

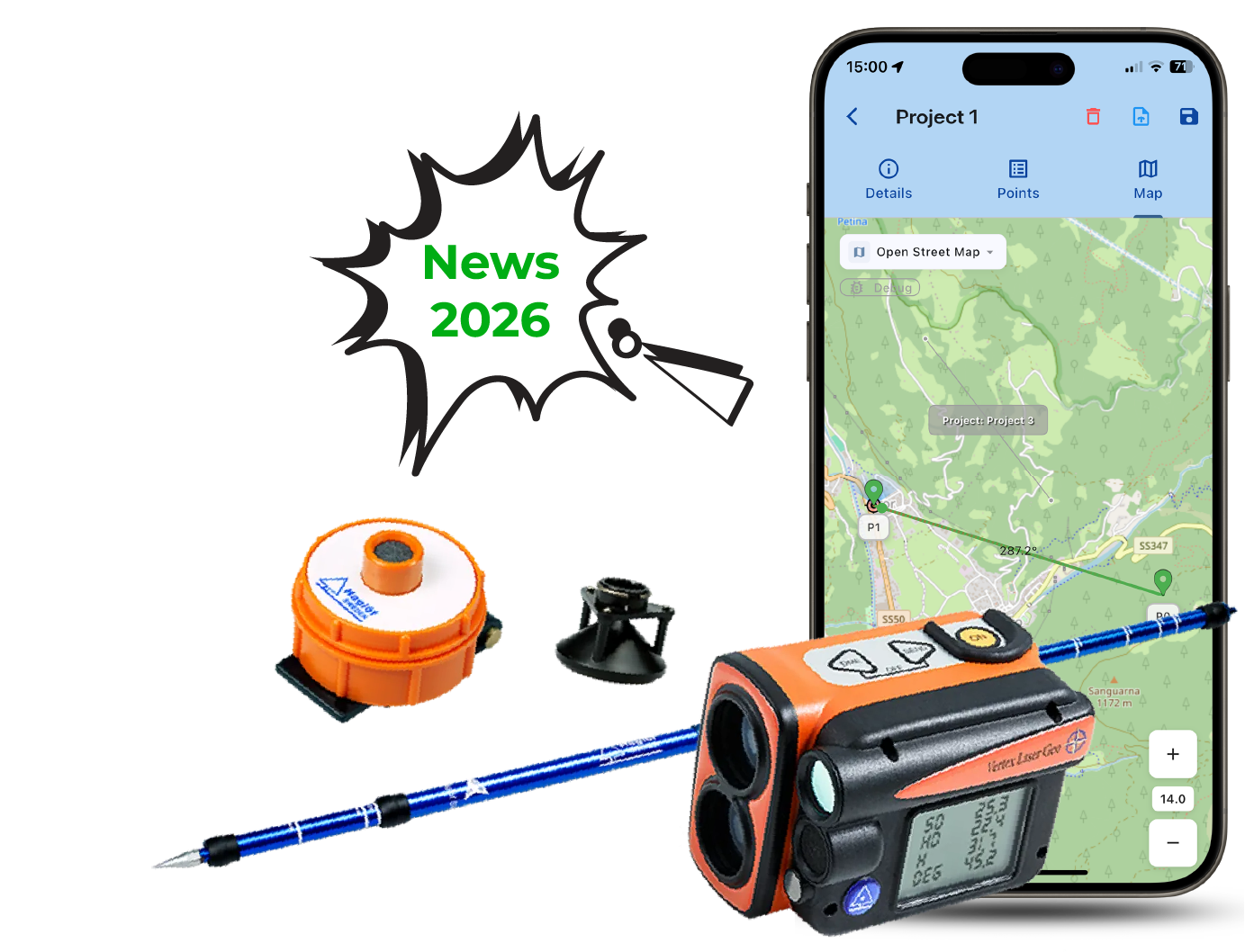

Highly versatile instrument for collecting data in open fields, equipped with a high-precision laser sensor, ultrasound, inclinometer, compass, and GPS. Ideal for collecting data necessary for cableway line tracing and the preparation of forest work sites.
Long-distance measurement with high-precision laser and integrated sensors for precise three-dimensional measurements.
Display of results on an integrated HUD display and an external graphic display.
Integrated GPS receiver with a 5-position numeric ID attribute to mark data with geographic coordinates.
Data storage on an integrated SSD unit and easy data transfer to a PC without software installation.
Long-distance measurement with high-precision laser and integrated sensors for precise three-dimensional measurements.
Display of results on an integrated HUD display and an external graphic display.
Integrated GPS receiver with a 5-position numeric ID attribute to mark data with geographic coordinates.
Data storage on an integrated SSD unit and easy data transfer to a PC without software installation.
Why use
TeleferiKa + Vertex Laser GEO?
Thanks to the synergy between data collected with the Vertex Laser GEO2 and the Teleferika app, you can precisely calculate the Azimuth angle required for the cable crane line and acquire key points for accurate design.
This functionality allows you to directly mark support points in the field, providing immediate feedback for the design and fine-tuning of the cable crane construction project.
The result: reduced survey times, optimized design, and simplified installation.
The portable Bluetooth printer is easy to carry, thanks to its small size and light weight, durable battery, and standard 80mm paper roll. It guarantees fast printing in any environment.
Furthermore, it allows the printing of batch measurements in two modes:
1. Aggregated: this aggregated mode provides summary data such as the number of pieces, gross and net volume, batch name, and measurement date.
2. Detailed: this mode prints the aggregated information and the details of each measured trunk.
We offer selected and proposed terminals to allow the easy use of jBosk even in harsh environments
INDUSTRIAL SMARTPHONE
The industrial smartphone device is essential for its portability and ease of use in the field. Thanks to the connection to the calipers and the integrated JBosk application, workers can accurately measure trunks, recording data in real time.
RUGGED TABLET
The tablet, available in 8 or 10-inch sizes, offers a larger screen to view the collected data. The integrated JBosk application simplifies the measurement process and allows efficient management of results, improving overall accuracy.
Would you like to learn more about JBosk's features?
We offer the possibility to download the demo version for free.
Contact us to request it now!
